Cal Master

Cal Master - Calibration Software

Downloaded demo file program includes tutorial, practice files, and a detailed manual to assist your evaluation.

$249.95+ S&H (price will increase February 1, 2009)

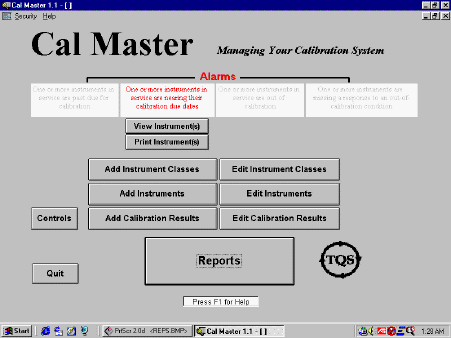

Cal Master Main Screen

  • Add Instrument Classes that speed the process of adding instruments
  • Add instruments, their calibration frequencies, their calibration points, and their instructions
  • Add calibration records for individual instruments


Cal Master alerts you whenever:

  • instruments are past due for calibration;

  • instruments are nearing their calibration dues dates;

  • instruments are out of calibration, or;

  • instruments were initially found out of calibration and no response was entered to indicate the status of potentially nonconforming product.

Cal Master also prints calibration worksheets (for technicians to use as instructions and for recording results), to print calibration histories and more

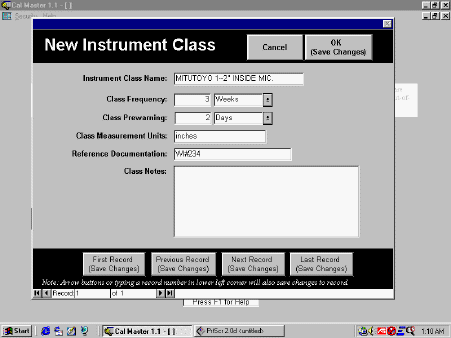

Instrument Class Screen

If a group of instruments is likely to have the same calibration frequency and calibration instructions then define a class for these instruments. This speeds the entry of instruments

You are able to set optional "early warnings"  if you wish an alarm to alert you at a set amount of time before the instrument's calibration due date (in this example, 2 days before the due date, the alarm 'One or more instruments are nearing their calibration dues' will turn on - on the main screen).  This will enable you to avoid the most common audit nonconformance-expired calibrations.













Instruments Screen - General Tab

Define the new instrument a unique ID number.

When the class is selected, the frequency, prewarning, and calibration instructions default to that of the instrument class

Set an 'accuracy required' (probably better termed 'allowable error').   This is a set as a percentage of the master or basis value.

Set 'Instrument in Service' to no if an instrument is removed from active service to prevent it from triggering alarms.

The current status of each instrument is shown at the bottom of the form as the instrument is displayed.  In this case the status is 'Past Due'

The status is based on your computer's clock.  When 'Today's date' is later than the 'Next calibration due date' the instrument is past due

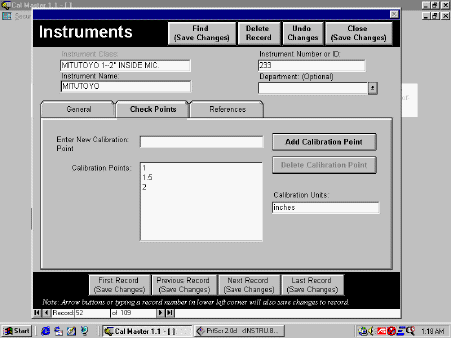

Instruments Screen - Check Points Tab


For each instrument, define the exact points at which calibration must occur.  Add as many points as necessary.

The references tab simply contains the calibration instructions which defaulted from the instrument class

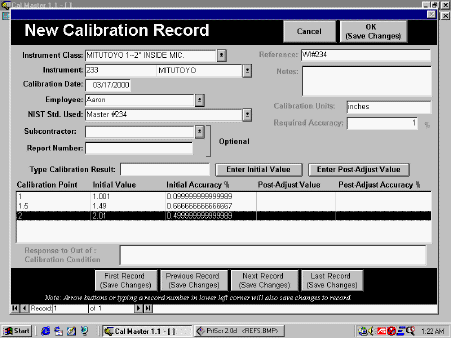

Calibration Screen

Select the instrument that is being calibrated.  A list of the check point appears.

An initial value is required at each check point.

The initial accuracy is automatically calculated.  If this is greater than the Required Accuracy, the instrument is out of calibration, and a post-adjust value should be entered to avoid turning on the alarm.  Even if the post-adjust accuracies are within the limit, the field 'Response to out-of calibration condition' must be completed to avoid a different alarm.   This field indicates what was done to assess potential nonconforming product that may have been produced. This is an extremely important record for ISO-9000.

In addition, to save a calibration record, an employee (who performed the calibration) and an NIST traceable standard # must be entered.

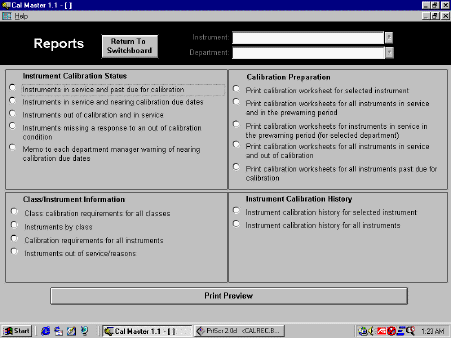

Reports Screen

Print calibration histories for any or all instruments

If the calibration is not occurring directly in front of the computer, it's advisable to print calibration worksheets for the instrument(s), that detail calibration points, instructions, accuracy required, etc.

Print a list of instruments by class, or by status (e.g. all instruments past due, all instruments in prewarning period, etc.)

Print a set of memos - one addressed to each department manager, warning of the instruments in prewarning (nearing calibration due dates) in their department



Send e-mail with questions
